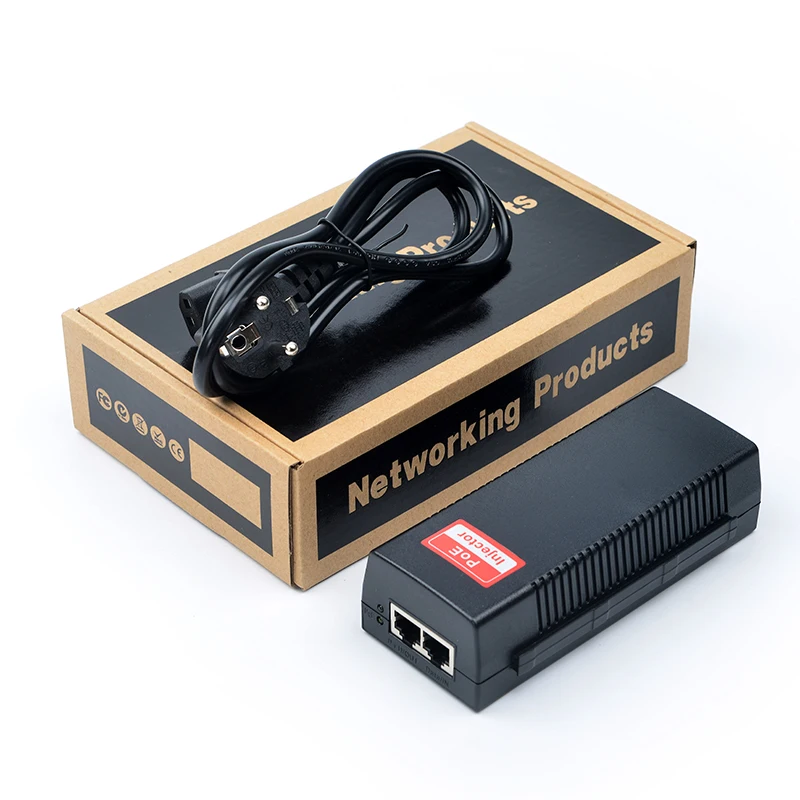

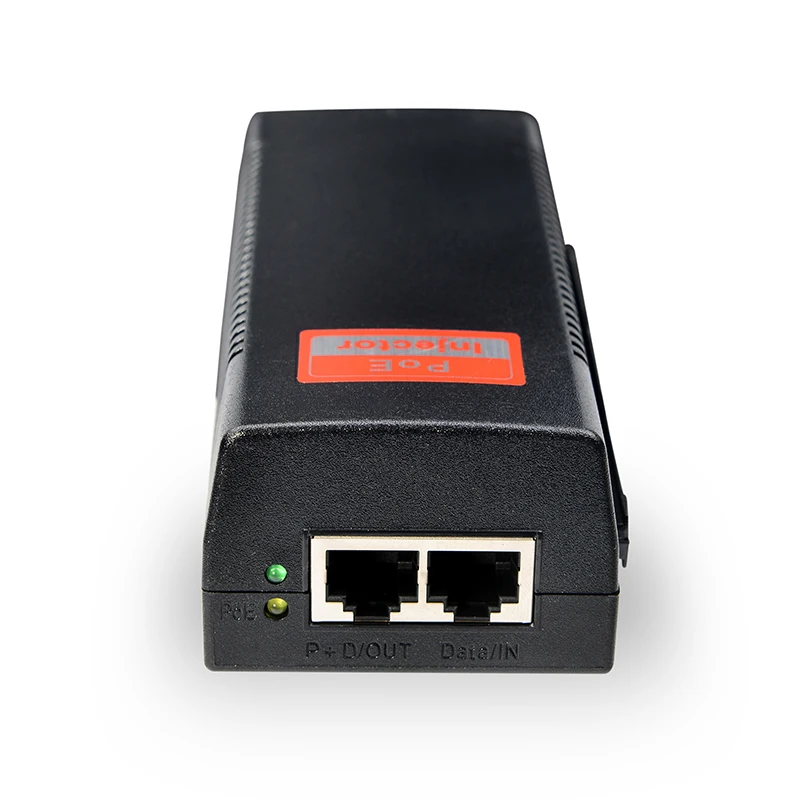

10/100/1000Mbps Gigabit 60W power injector at 4-pair standard Stock Products SDAPO PSE60G


SKU: 111077175019394 Category:


Products Description
Advanced PoE Solution

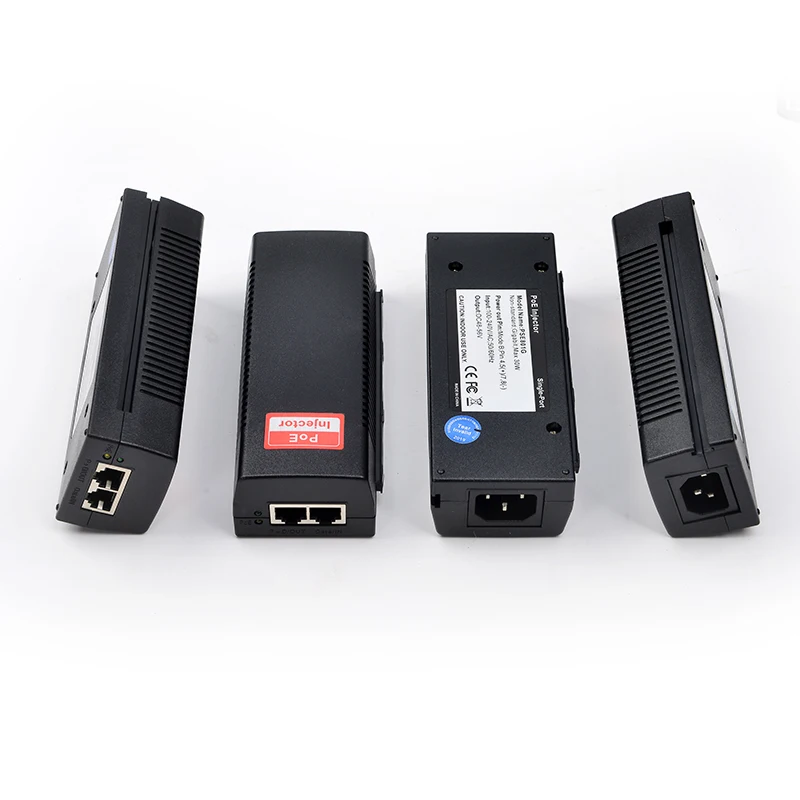

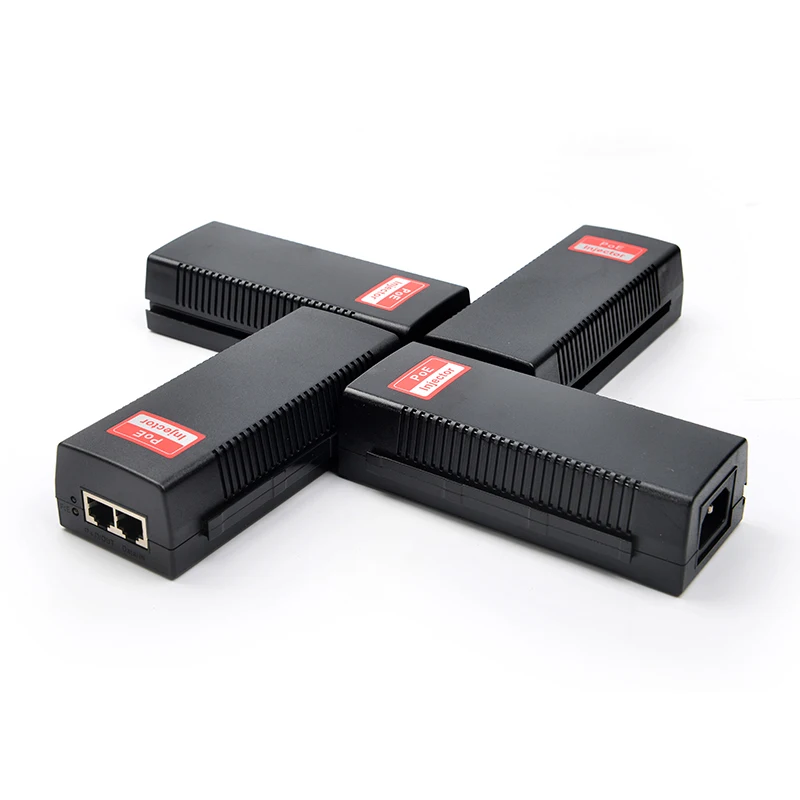

The PSE156G is a Gigabit Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. The PSE156G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at 4-pairs PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. By adding a PoE Splitter to existing non-PoE networking equipment, installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore. For all the function featured in PSE156G, people can get the benefit of flexible network installation at lower cost, less downtime.
Key Features
* Up to 60W of Power on4-pairs
* Safe on Low Power Devices Receive Only the Power TheyNeed
* Safe and Reliable Power to WLAN Access Points
* Automatic Detection and Protection of Non–standard EthernetTerminals
* Supports 10/100/1000Base-T LANenvironment
* Unique interlocking feature for easyinstallation

Technical Specifications Standards Compliance
Dimensions (L x W x H) / Weight 39*62.7*145mm
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-Tx Fast Ethernet
IEEE 802.3bt Power over Ethernet
AC Power (Green)
Connector: RJ-45 10/100/1000 Mbps
PoE (Orange)
PoE Power Output
Environmental Conditions
Pin Assignment and Polarity:
Operating Temperature: -20 ~ 60°C
Data+Power Pairs 1/2 (+), 3/6 (-);
Storage Temperature: -10 ~ 70°C
Power Pairs 4/5 (+), 7/8 (-)
Storage Humidity:
Output Power Voltage: 54-56 VDC
Maximum 95%, Non-condensing
Power: Mode-A+Mode-B 60 Watts Max.
Input Power AC Input Voltage: 100~240VAC
Requirements AC Input Current: ≤1.5A @ 100~240 VAC
