Description

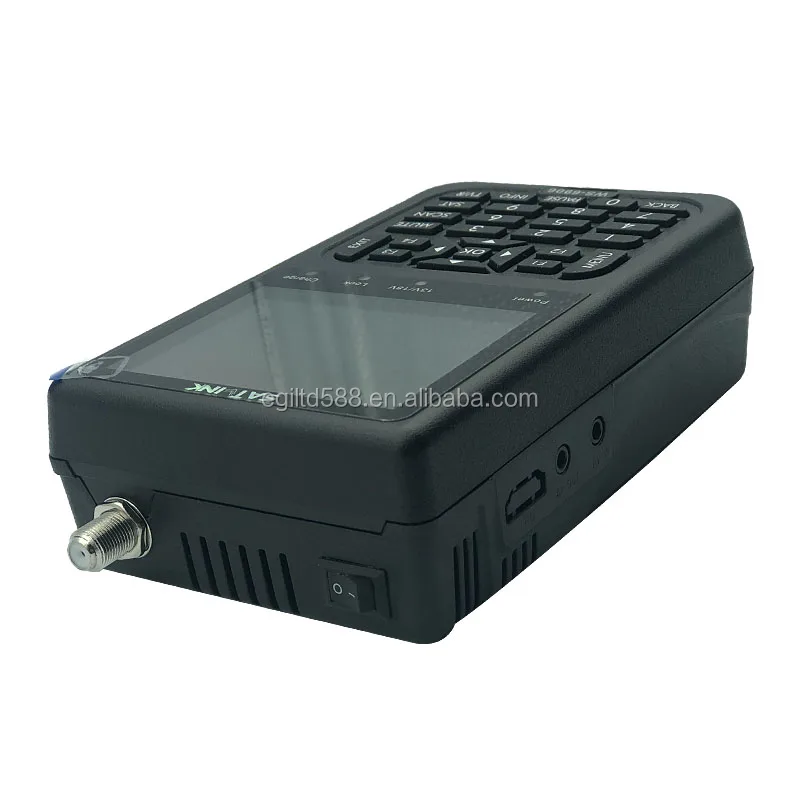

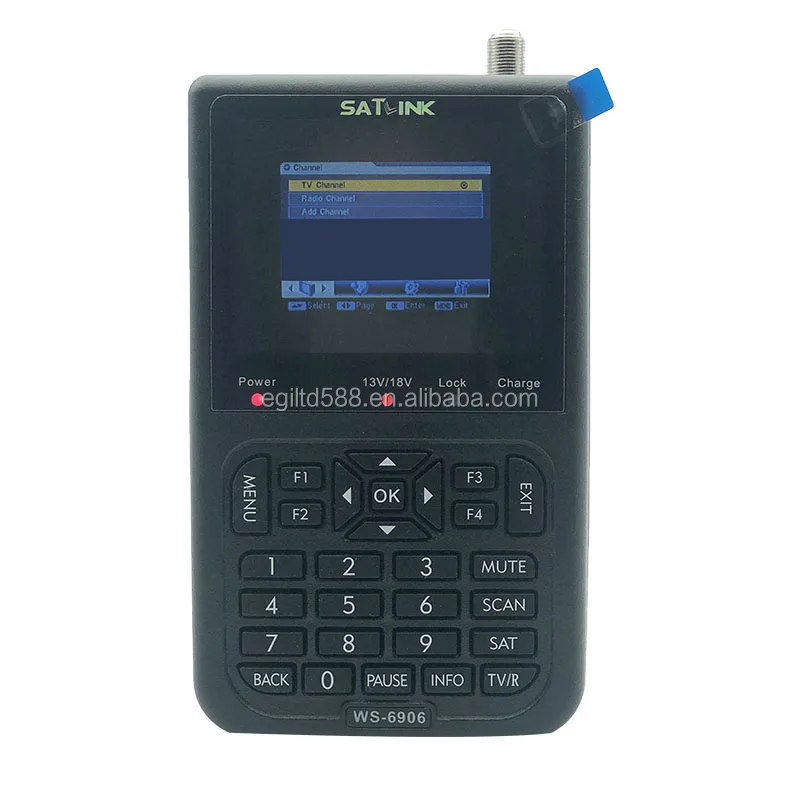

High Quality Digital Atlink Meter WS-6906 3.5″ LCD Display FTA Digital Satellite Meter Satellite Finder WS 6906 Satlink Ws6906
AV-IN & OUT PUT
Satlink WS-6906 DVB-S FTA can be connected as a standard satellite receiver to a TV. In addition, the device has an AV input. At this, other media players or AV surveillance cameras to be connected !
– Color TFT LCD display with 3.5 “/ 8.9 inch
– Built-in speaker
– Display the signal strength in percent and as a bar
– Display of signal quality as a percentage and as a bar
– Acoustic signal when a transponder is locked
– Automatic Channel Search TV + Radio
– Reception and playback of DVB-S Free to Air TV programs
– Reception and playback of DVB-S Free to Air Radio Programs
– Using an adapter cable can be connected to the device to the TV set and satellite receiver are used as normal
– Firmware update via RS232 interface
– 7 Menu Languages: English, French, Russian, Arabic, Farsi, Portuguese, Turkish
– Built-in 8.4V / 3000mA / h Li-Ion battery for up to 6 hours operating time
– Charging time 4 hours
|
System capabilities |
Fully DVB compliant |
Yes |
|
LNB/Tuner input |
Connector |
F type,male |
|
Frequency range |
950MHz-2150MHz |
|
|
Signal lever |
-65dBm~-25dBm |
|
|
LNB supply |
13/18V,max400mA |
|
|
LNB switch control |
22KHz |
|
|
DiSEqC |
Ver 1.0 |
|
|
Demodulator |
Front end |
QPSK |
|
Symbol rate |
2Mbps~45Mbps |
|
|
SCPC and MCPC Capable |
Yes |
|
|
Spectral inversion |
Auto conversion |
|
|
System resource |
Processor |
32bit processor (200MHz) |
|
SDRAM |
16Mbyte |
|
|
FLASH |
2Mbyte |
|
|
EEPROM |
8Kbyte |
|
|
Video decoder |
MPEG 2 |
Main Proflie@Main Level |
|
Data Rate |
up to 15M bits/s |
|
|
Resolution |
720*576,720*480 |
|
|
Video format |
PAL/NTSC/SECAM |
|
|
MPEG Audio |
MPEG 1 layer 1&2 |
|
|
Type |
Mono |
|
|
Sampling rates |
32,44.1 and 48KHz |
|
|
Serial data interface |
Connector |
USB type |
|
Power supply |
Li-oN Battery |
3000 mA |
|
Supply voltage |
12.6Volt |
|
|
charger |
90-240V |
|
|
Panel connectors |
Digital tuner input |
F type, male |
|
Physical Specification |
Size |
9.5×15.5×4.5 (cm) |
|
Weight(Net) |
0.5 Kg |
What’s In the Box?
– 1 x WS-6906 Satellite Finder
– 1 x Black Protective Bag
– 1 x USB Upgrade Cable
– 1 x Strap
– 1 x Car Charger
– 1 x Power Adapter
– 1 x AV Cable
– 1 x English User Manual
